Precision Laser Cut & Robot Welded

Metal Base Plates — Custom Fabrication in UAE

Structural column base plates, post base plates, handrail floor flanges, bollard plates, machine mounting plates, and signage base plates. Laser cut and welded in mild steel, stainless steel, and aluminum. Any size, any quantity.

Get WhatsApp Quote Call 056 686 4001 Call 056 996 0448

0.01mmBolt Hole Precision

50mmMax Thickness

No MOQ1 Piece to 10,000+

3-5 DaysFast Turnaround

About Our Products

Custom Metal Base Plates — Fabricated in UAE

What is a Metal Base Plate?

A metal base plate is a flat steel, stainless steel, or aluminum plate that serves as a foundation, anchor point, or mounting surface for structural columns, posts, handrails, bollards, machinery, signage, and other vertical or heavy elements. Base plates distribute concentrated loads across a wider surface area, enabling secure bolting or welding to concrete foundations, floors, walls, or other structures. They are essential components in construction, industrial fabrication, infrastructure, interior fit-out, and architectural metalwork across every building and engineering project.

Zero Point Interiors is a specialist metal base plate fabricator in UAE, producing precision base plates for structural steelwork, handrail systems, bollard installations, equipment mounting, signage structures, solar panel racking, and virtually any application requiring a solid metal foundation. Our fiber laser cutting machines position bolt holes with ±0.01mm accuracy, eliminating the need for manual drilling and ensuring perfect alignment with anchor bolts every time.

We cut base plates from mild steel (A36/S275/Q235), stainless steel (304, 316), aluminum (6061, 6063), and galvanized steel in thicknesses from 3mm to 50mm. Whether you need a single prototype or thousands of identical plates for a construction project, our combination of fiber laser cutting and robotic welding delivers consistent quality at competitive pricing with delivery across all seven Emirates in 3–5 working days.

Why Choose Zero Point Interiors? Laser-cut bolt holes are 50x more accurate than manual drilling (±0.01mm vs ±0.5mm). No minimum order. Any material, any size, any shape. Complete base plate assemblies with welded stiffeners, gussets, and spigots available.

Our Product Range

Types of Metal Base Plates We Fabricate

From heavy structural column plates to decorative handrail flanges, we manufacture every type of metal base plate used in UAE construction and industry.

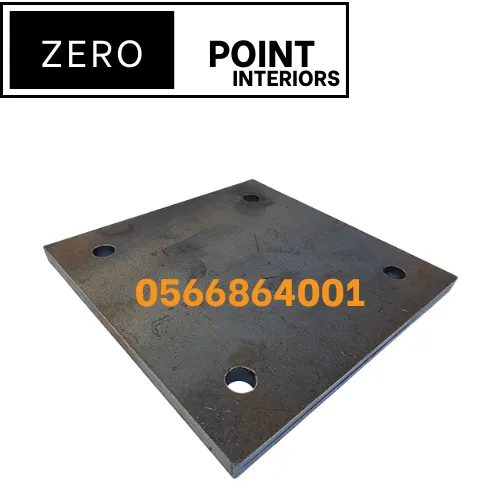

Structural Column Base Plates

Heavy-duty plates welded to the bottom of steel columns (I-beam, H-beam, SHS, RHS, CHS, UC sections) to transfer axial loads, shear forces, and bending moments to concrete foundations via holding-down anchor bolts.

200×200 to 600×600mm12–50mm thickA36 / S275 / S355

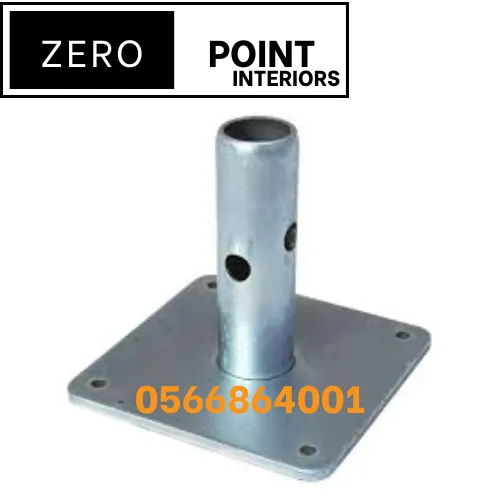

Post Base Plates

Medium-duty plates for fence posts, gate posts, guardrail posts, pergola columns, and carport supports. Feature a welded spigot or socket to accept round, square, or rectangular tube posts with bolt-down capability.

100×100 to 300×300mm6–16mm thickMS / SS / Galvanized

Handrail & Railing Base Plates

Floor flanges, wall flanges, and stair flanges for balustrade and handrail systems. Round and square profiles accepting 42.4mm and 48.3mm OD pipes. Surface-mounted or side-fixed configurations for glass, cable, and tube railings.

Round & square6–12mm thickSS 304 / SS 316 / MS

Bollard Base Plates

Foundation plates for security bollards, traffic bollards, parking barriers, and decorative street bollards. Designed for bolt-down or embed installation with high-impact resistance for vehicle and pedestrian safety applications.

200×200 to 400×400mm10–25mm thickHDG / Powder coated

Machine & Equipment Mounting Plates

Precision ground and drilled plates for mounting industrial machinery, generators, compressors, pumps, HVAC units, and production equipment. Vibration-dampening designs with leveling bolt provisions and anti-vibration mount holes.

Custom to 1200mm10–40mm thickA36 / A572 Gr50

Signage Base Plates

Mounting plates for sign posts, monument signs, wayfinding pylons, billboard structures, and directional signage. Designed for concrete anchor or ground-embed installation with clean visible finish for commercial applications.

150×150 to 500×500mm6–20mm thickGalvanized / Painted

Solar Panel Mounting Plates

Base plates and brackets for photovoltaic racking systems, solar carport structures, and ground-mount solar arrays. Lightweight aluminum or galvanized steel options with precision-cut mounting slots for adjustable panel angles.

Aluminum / Galvanized3–10mm thickSlotted holes

Antenna & Telecom Tower Plates

Heavy-duty foundation plates for communication towers, antenna masts, lighting poles, flagpoles, and transmission structures. Engineered for wind load resistance and seismic requirements with certified welding quality.

300×300 to 800×800mm16–50mm thickHDG standard

Specifications

Metal Base Plate Specifications & Capabilities

Base Plate Type	Typical Size Range	Thickness	Common Materials	Primary Applications
Structural Column	200×200 – 600×600mm	12 – 50mm	A36, S275, S355, Q345	Buildings, Bridges, Industrial Structures
Post Base Plate	100×100 – 300×300mm	6 – 16mm	MS, Galvanized, SS	Fences, Gates, Pergolas, Guardrails
Handrail Floor Flange	80×80 – 150×150mm	6 – 12mm	SS 304, SS 316, MS	Balustrades, Railings, Balconies
Bollard Base Plate	200×200 – 400×400mm	10 – 25mm	MS HDG, SS 316	Security, Traffic, Parking, Streetscape
Machine Mounting	Custom to 1200mm	10 – 40mm	A36, A572 Gr50	Machinery, Generators, Pumps, HVAC
Signage Base Plate	150×150 – 500×500mm	6 – 20mm	MS, Galvanized, Aluminum	Signs, Pylons, Wayfinding, Billboards
Solar Mounting Plate	Custom profiles	3 – 10mm	Aluminum, Galvanized	PV Panels, Solar Carports, Ground Mount
Antenna / Tower Plate	300×300 – 800×800mm	16 – 50mm	A36 HDG, S355	Telecom Towers, Flagpoles, Light Poles

Materials We Work With

Base Plate Materials & Finishes

We fabricate base plates from all structural metals with multiple surface finish options to match your application requirements.

Mild Steel / Carbon Steel

A36, S235, S275, S355, Q235, Q345 grades. The most common and cost-effective choice for structural column base plates, post plates, machine mounts, and general fabrication. Excellent weldability and strength. Available raw, primed, galvanized, or powder coated.

Stainless Steel

Grade 304 for interior and general exterior use. Grade 316 for marine, coastal, food processing, and chemical environments. Naturally corrosion resistant with no coating required. Available in mill finish, brushed (No.4), or mirror polished for architectural applications.

Aluminum

5052, 6061, and 6063 alloys for lightweight base plates. Naturally corrosion resistant and one-third the weight of steel. Ideal for solar panel mounts, signage, electronics enclosures, and applications requiring non-magnetic properties. Can be anodized or powder coated.

Galvanized Steel

Hot-dip galvanized (HDG) mild steel for maximum outdoor durability at lower cost than stainless steel. Zinc coating protects for 20–50 years depending on environment. Standard choice for outdoor bollards, fence posts, signage, solar mounts, and infrastructure base plates.

Industries We Serve

Metal Base Plates for Every Industry in UAE

Our precision-fabricated base plates serve diverse sectors across the UAE and GCC region.

Structural Steel & ConstructionOil & Gas / PetrochemicalMarine & Coastal ProjectsSolar & Renewable EnergyInterior Fit-Out & ArchitectureInfrastructure & LandscapingSignage & AdvertisingIndustrial & ManufacturingTelecom & UtilitiesFurniture & Retail

How It Works

Our Base Plate Fabrication Process

From your drawing to finished delivery, we make ordering custom metal base plates simple and fast.

Send Your Drawing

WhatsApp us your base plate drawing (DXF, DWG, PDF, or sketch). Include material, thickness, bolt holes, quantity, and finish requirements.

Receive Quote

Our team provides a detailed quotation within hours including material cost, cutting, welding, finishing, and delivery to your location.

Approve & Pay

Confirm the quote, approve material and finish, and make advance payment. We schedule production immediately.

Fabrication

Plates are laser cut with precision bolt holes, welded by robot or certified welder, and surface finished (primed, galvanized, or powder coated).

QC & Delivery

Every batch is dimensionally inspected before packaging. Delivered across all UAE Emirates or available for pickup from our RAK facility.

Got Questions?

Frequently Asked Questions About Metal Base Plates

What is a metal base plate and what is it used for?+

A metal base plate is a flat steel, stainless steel, or aluminum plate that serves as a foundation or anchor point for structural columns, posts, equipment, handrails, bollards, signage, and other vertical elements. Its primary function is to distribute loads over a wider area, enabling secure bolting or welding to concrete foundations, floors, or other surfaces across construction, oil and gas, marine, utilities, infrastructure, and commercial fit-out projects.

What types of metal base plates does Zero Point Interiors fabricate?+

We fabricate structural column base plates, post base plates for fences and gates, handrail floor flanges and wall flanges, bollard base plates, machine and equipment mounting plates, signage base plates, solar panel mounting plates, antenna and telecom tower base plates, and custom base plates to any specification — including welded stiffeners, gussets, spigots, and other attachments.

What materials are used for metal base plates?+

We cut base plates from Mild Steel (A36/S275/Q235) for structural and general use, Stainless Steel (304 and 316) for corrosion resistance in marine, food, and architectural applications, Aluminum (5052/6061/6063) for lightweight and non-magnetic applications, and Galvanized Steel for outdoor durability at lower cost than stainless.

What sizes and thicknesses of base plates can you manufacture?+

We fabricate base plates from 50×50mm up to 600×600mm and beyond. Thicknesses range from 3mm for decorative applications up to 50mm for heavy structural columns. Square, rectangular, circular, triangular, and custom shapes are all possible, with bolt hole patterns laser cut to ±0.01mm accuracy in any configuration.

What is a structural column base plate?+

A structural column base plate is a thick steel plate welded to the bottom of a steel column that transfers axial loads, shear forces, and bending moments to the concrete foundation below via holding-down anchor bolts. Thickness ranges from 12mm to 50mm and is designed by structural engineers to AISC 360, Eurocode 3 (EN 1993), or BS 5950 standards. We fabricate to engineer-approved shop drawings.

What is the difference between a base plate and a floor flange?+

A base plate is a general term for any flat metal plate used as a foundation. A floor flange is a specific type for handrail and balustrade systems — it has a central socket accepting a round pipe or tube post, with bolt holes for surface mounting. We manufacture both in mild steel, stainless steel, and aluminum.

Can you fabricate base plates with pre-cut bolt holes?+

Yes, all bolt holes are laser cut during the plate cutting process with ±0.01mm accuracy — 50 times more precise than manual drilling. We cut standard patterns (2-hole, 4-hole, 6-hole, 8-hole) and custom patterns to match your anchor bolt layout. Slotted holes for alignment adjustment are also available.

What surface finishes are available for base plates?+

Available finishes include raw/mill finish, red oxide primer, hot-dip galvanized (HDG) for 20–50 year outdoor protection, powder coating in any RAL color, brushed or mirror polish for stainless steel, and anodizing for aluminum. HDG is most popular in UAE for outdoor and coastal applications.

How much do custom metal base plates cost in UAE?+

Pricing depends on material, size, thickness, bolt holes, surface finish, welded attachments, and quantity. As a local manufacturer, our setup costs are minimal which makes even small orders economical, and bulk orders receive significant discounts. WhatsApp 056 686 4001 with your drawing or specifications for a quote within hours.

What is the minimum order quantity?+

No minimum order quantity. We accept single prototype pieces, small batches for fit-out contractors, and production runs of thousands for structural steel fabricators and construction companies — the same laser program cuts one plate or ten thousand with identical precision.

How quickly can you deliver metal base plates in UAE?+

Standard orders are completed in 3–5 working days. Rush orders for simple laser-cut plates can be processed in 24–48 hours. Large production runs or orders requiring galvanizing may take 7–14 working days. We deliver throughout all seven UAE Emirates and pickup from our RAK facility is also available.

Can you fabricate base plates with welded stiffeners and gussets?+

Yes, we produce complete base plate assemblies including welded stiffener ribs, gusset plates, shear keys, spigot tubes, and column stub sections. Robotic welding ensures consistent quality on production runs, while certified manual welders handle complex one-off assemblies. Third-party weld inspection is available.

What file formats do you need for base plate fabrication?+

We accept DXF (preferred), DWG, PDF with dimensions, AI, and hand sketches with clear measurements. For structural work we use engineer-stamped shop drawings. If you have only a rough idea, our team can create the fabrication drawing for you.

What is the load capacity of a metal base plate?+

Load capacity depends on plate size, thickness, material grade, bolt configuration, and concrete bearing strength. A typical 200×200×12mm A36 plate with four M16 anchors supports 50–100 kN; heavier column plates handle hundreds of kilonewtons. Actual capacity must be calculated by a qualified structural engineer for your application.

Do you supply base plates for handrails and balustrades?+

Yes, we manufacture round floor flanges (for 42.4mm and 48.3mm pipes), square base plates for SHS/RHS posts, wall flanges, adjustable angle flanges for staircases, and spigot plates for glass balustrade systems — in mild steel, stainless steel 304 (interior), and 316 (exterior/marine), all with precision laser-cut bolt holes.

What industries use metal base plates in UAE?+

Metal base plates serve construction (column plates, handrail flanges), oil and gas (equipment mounting, structural steelwork), marine (SS 316 bollards and fittings), solar energy (panel mounting), signage (post foundations), infrastructure (bollards, guardrails, light poles), interior fit-out (balustrades, partitions), industrial manufacturing (machine mounts), and telecom (tower foundations).

Need Custom Metal Base Plates? Get a Quote on WhatsApp

Send us your drawing or specifications — material, size, thickness, bolt pattern, and quantity — and receive a competitive quote within hours. Manufactured locally in UAE with fast delivery to all Emirates.
